AR6100E Spectrum Receiver 2.4G 6 channel DSM2 model drone Receiver

description

• 1. SPECKTRUM AR6100 Receiver

• 2. AR6100E MicroLite V1.6 (2.4 GH6-pass receiver)

• 3. Compatible with DX6i/DSX9/DSX11/DSX12 DX6/DX6i/DX7/DX8 DSM2and other transmitters （Please note that only the DSM2 system of this model is supported. Please make sure that the DSM2 system in your country is available.）

• 4. Strong anti-jamming ability.

Commodity parameters:

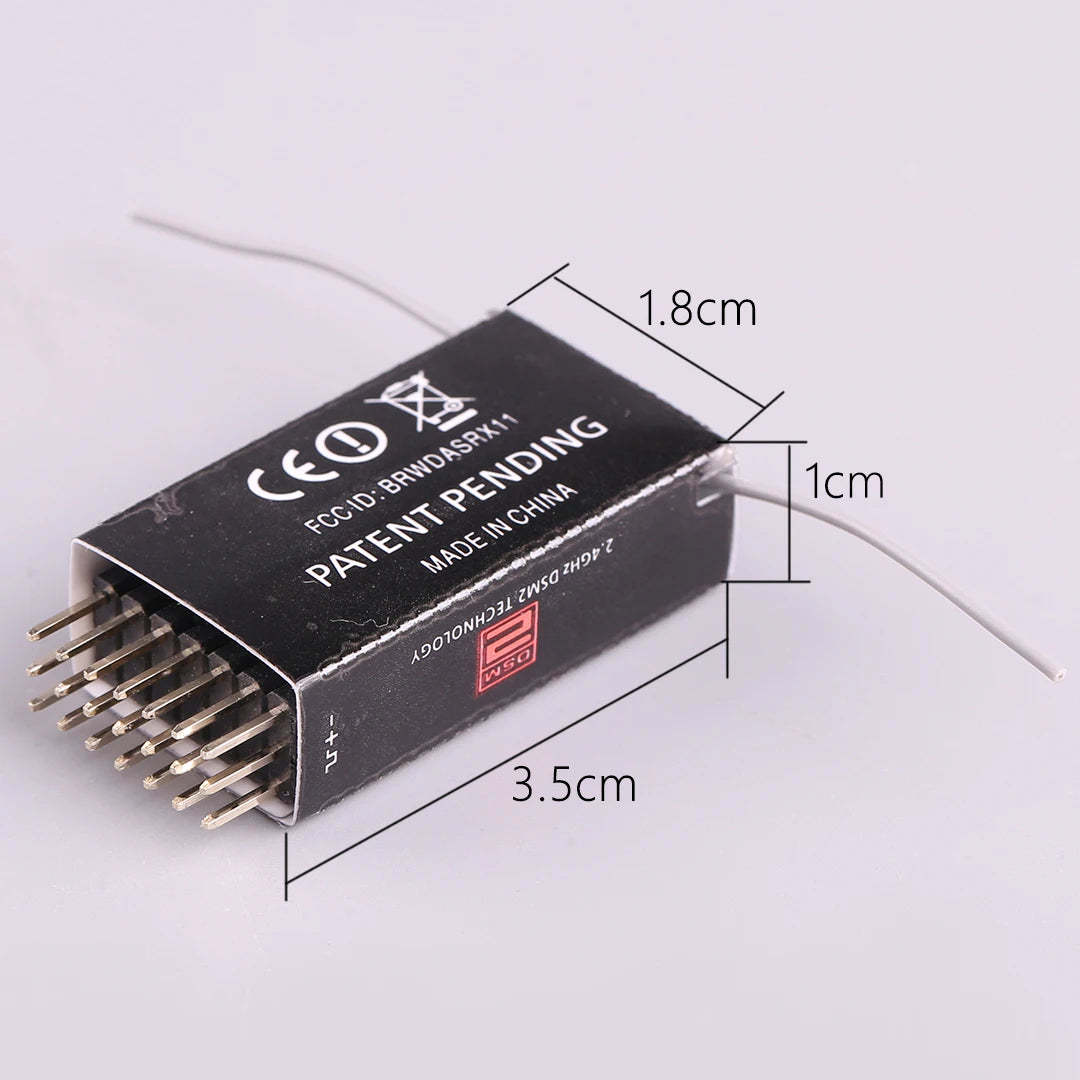

• 1.Dimensions: 3.5*1.8*1cm

• 2. Product Brand:  SPEKTUM

• 3. Product Number: AR6100E Six-Channel Mini Receiver

• 4. weight: 4.66g

• 5. Channel: Six Channels

• 6. Format: DSM2

• 7. Working voltage: 3.5V-9.6V

• 8. Telecontrol Distance: Ground test is about 200-300 meters (estimated to be about 400 meters above)

1. Dual antenna signal is stronger

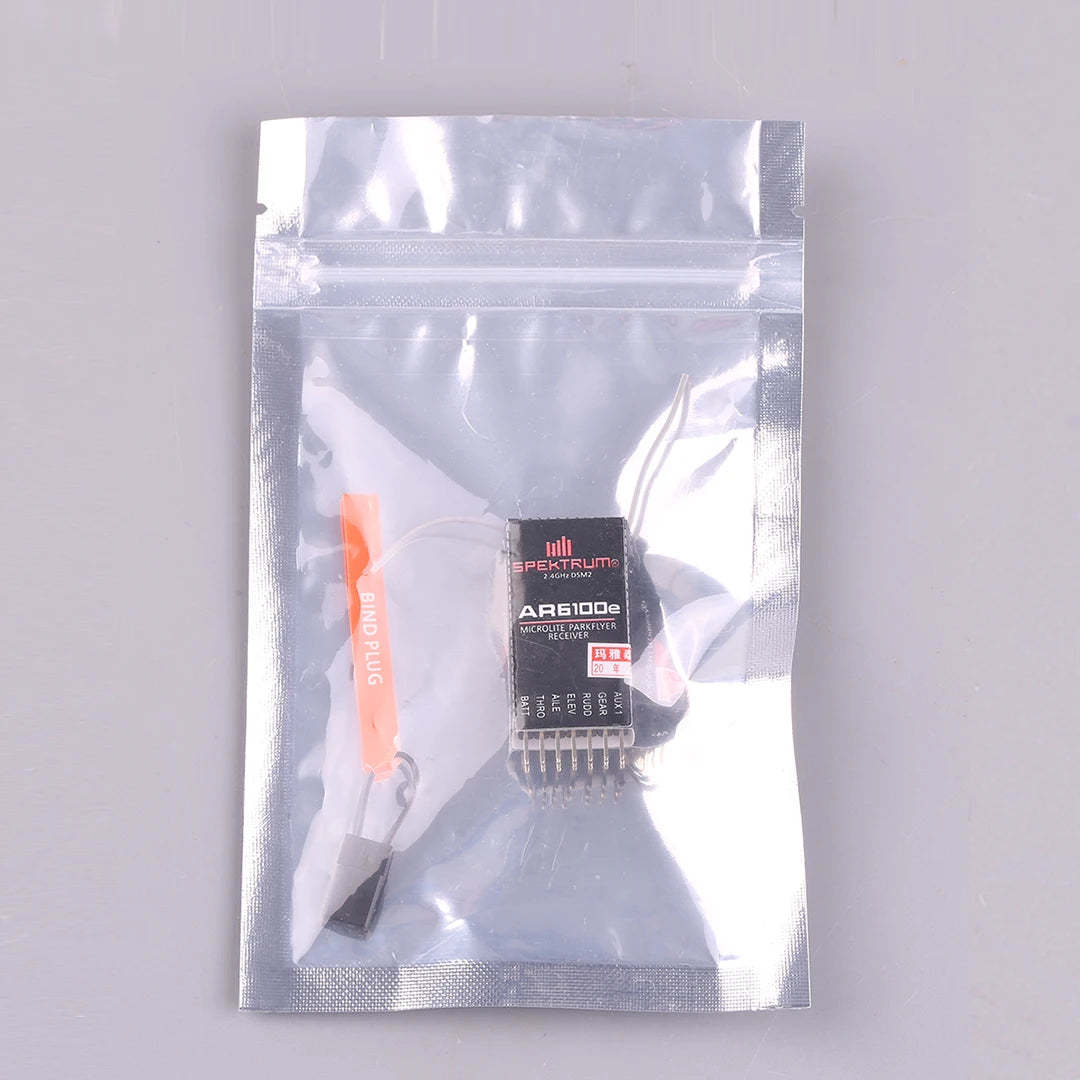

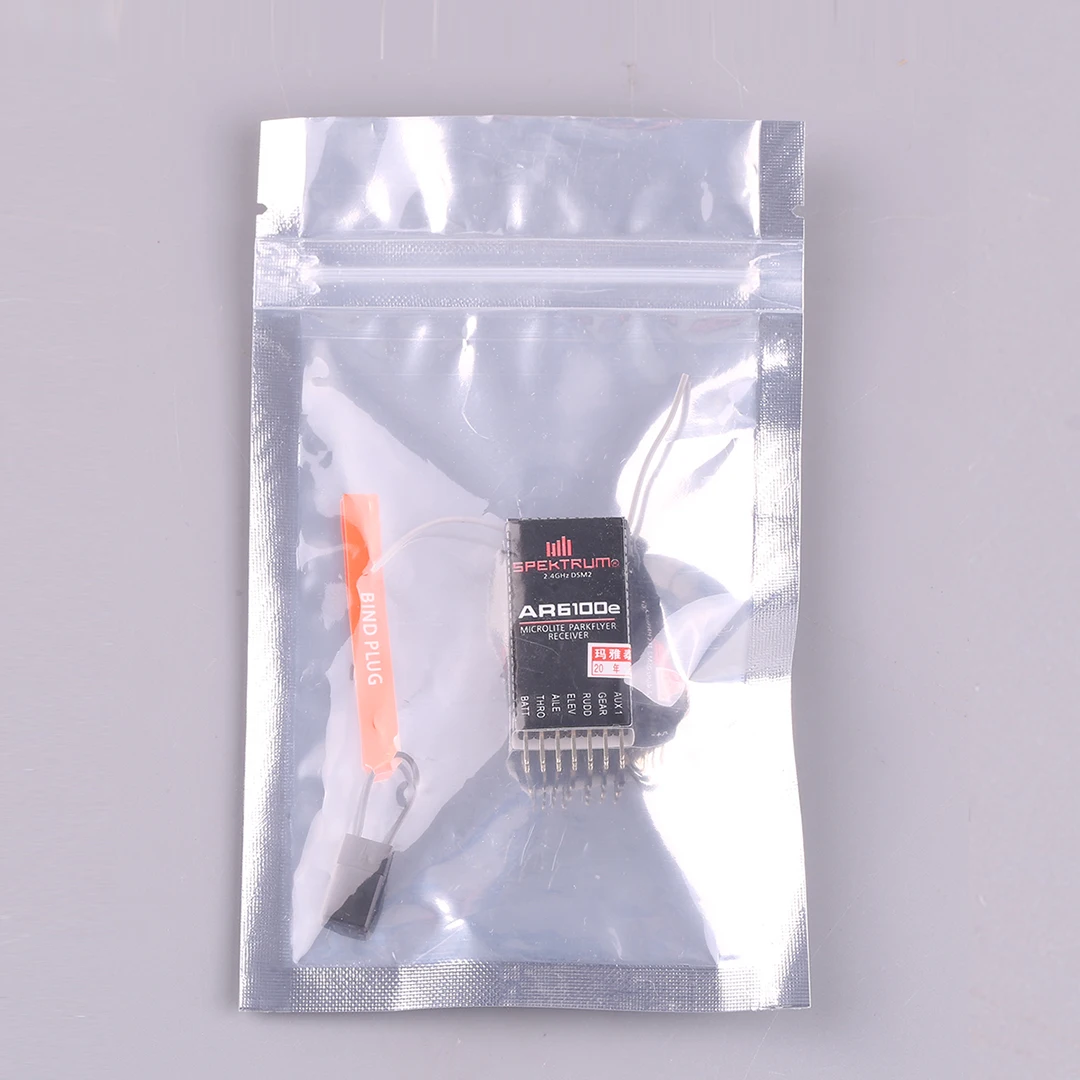

Note: This product is packaged in a simple plastic bag

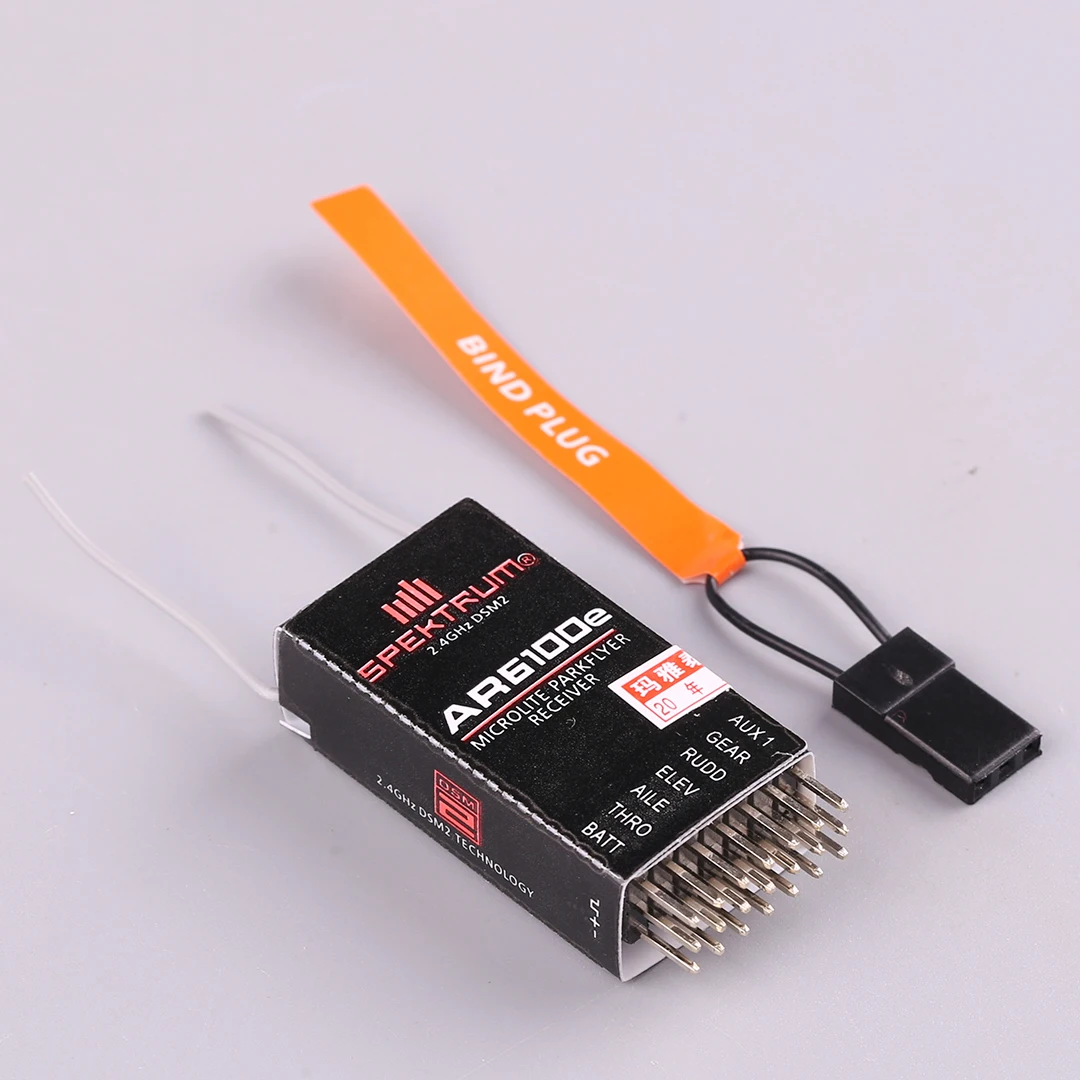

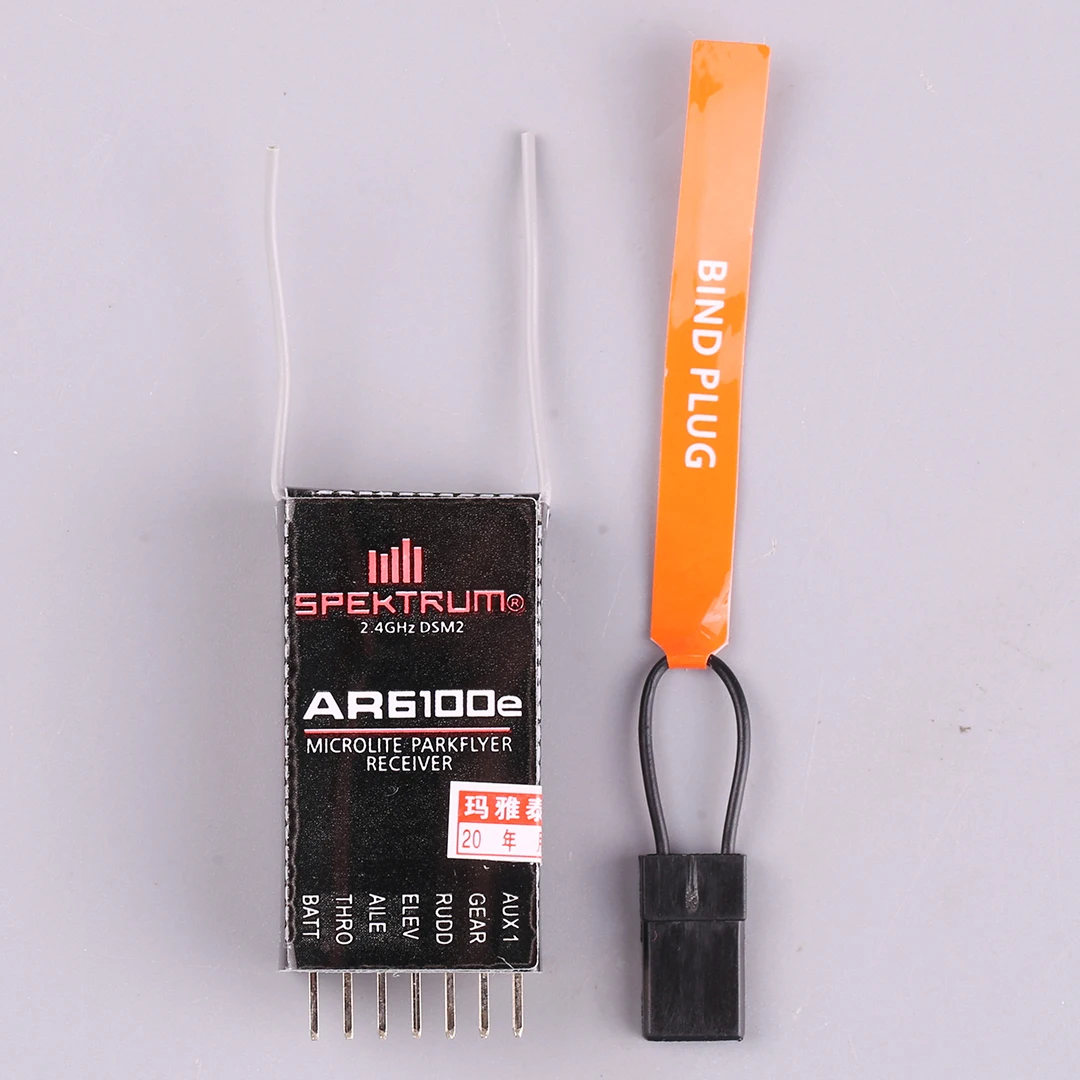

Packing list: Receiving host * 1/Frequency line * 1

Coding method:

The code plug will be inserted into the receiver battery channel, and the battery (or switch on the power supply) will be inserted into any other unused channel, when the receiver lamp does not turn on. Set the transmitter to a non-runaway protection state (the lowest throttle lever can be placed), hold the light on the transmitter's high-frequency head and turn on the transmitter power supply. At this time, the transmitter's high-frequency head LED light flashes, and the receiver's LED light flashes in a few seconds. After the flash stops, the frequency alignment is completed.

The new receiver only needs to check the code once and remove the check plug when the code is used.

AR6100 DSM2 ML 6-Channel Receiver End-Pin, Air
Overview

At only 4.4 grams and 19.0mm x 30.0mm x 9.0mm (WxLxH), the AR6100E is the ultimate 2.4GHz receiver for most any small electric model from mini profile foamies to 400 class helis. Because it uses advanced DSM2? technology, it is only compatible with DSM2 aircraft radio and module systems. It also boasts a wide input range that allows it to operate with 3.5- to 9-volt electrical systems.

Key Features

Super light weight 4.4 grams DSM2 Technology Compatible only with DSM2 aircraft radio and module systems 6 Channel End pin connectors Short 30mm antennas for mounting convenience
